Chosen by defence primes, developers and system integrators since 2007
Advanced Capabilities to Protect Offshore Platforms
Recent events have made the surveillance and security of offshore platforms more essential than ever.
Oil and gas platform or offshore wind security can be complex, often involving multiple locations and a unique set of sensors. Our modular software makes it easy to build a flexible solution that will automatically detect and track threats, alert operators and control deterrent devices.
Sensor Integration & Security Automation
Advanced solutions for radar and sensor-based offshore security systems, including modular software, developer tools and radar interface hardware.

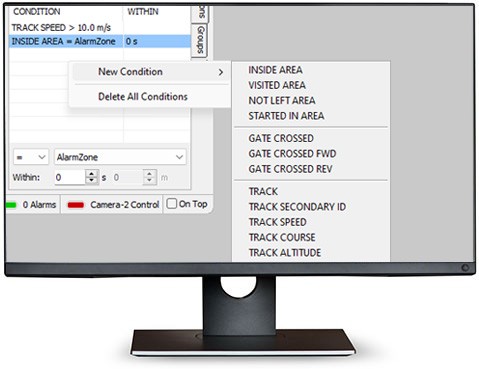

Our technology provides easy integration of your chosen radars, cameras and sensors (such as AIS and ADS-B), and capabilities such as tracking targets from fused radar, AIS and ADS-B data, flexible alarm logic and automated camera steering and deterrent activation.
Wide Device & Protocol Support
With Cambridge Pixel's hardware-agnostic technology, engineers, developers and system integrators can use a wider range of devices, with support for most radars and a huge range of cameras, sensors and effectors.
Compatible with Open Standards protocols such as ASTERIX and NMEA-0183 as well as numerous proprietary and industry formats including Pelco-D, our solutions can integrate with many third-party systems and devices.
Detect & Deter Threats

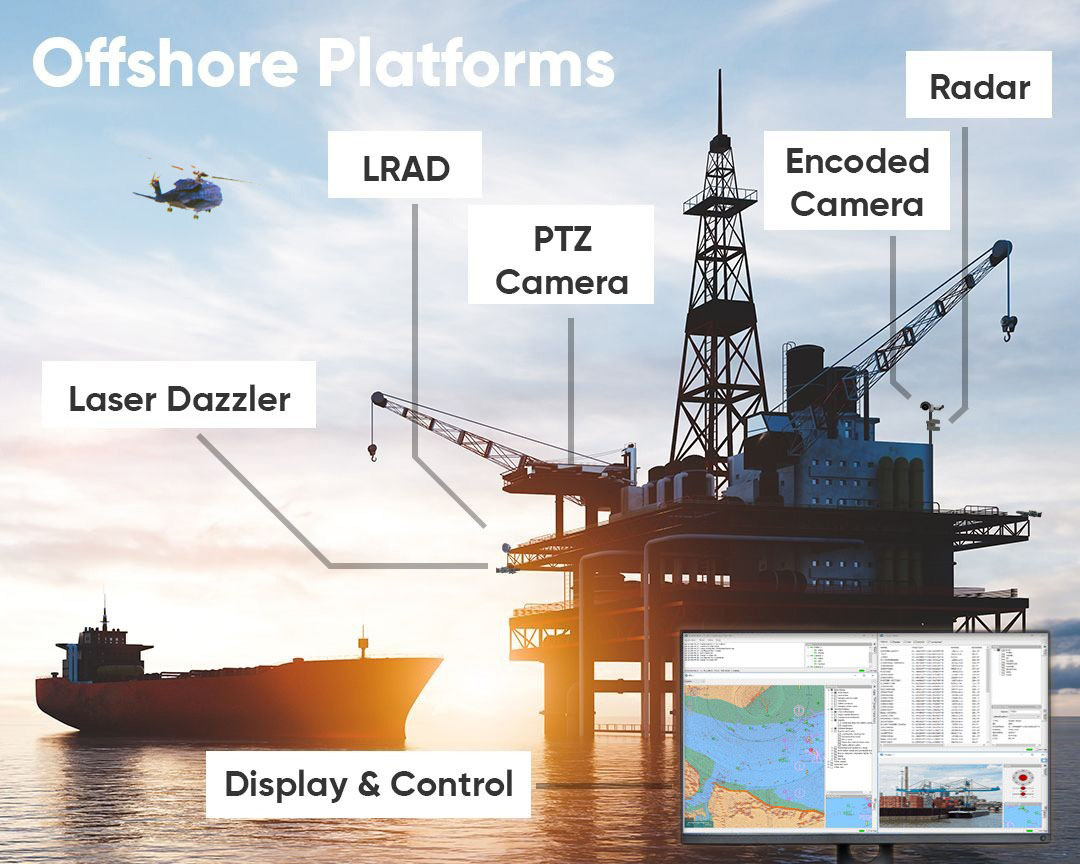

Our solutions can be configured to detect and track hostile targets such as pirates or uncrewed / unmanned systems. It can automate responses to deter targets approaching offshore platforms by aiming a long-range acoustic device (LRAD) or laser dazzler at targets and playing recorded warnings.

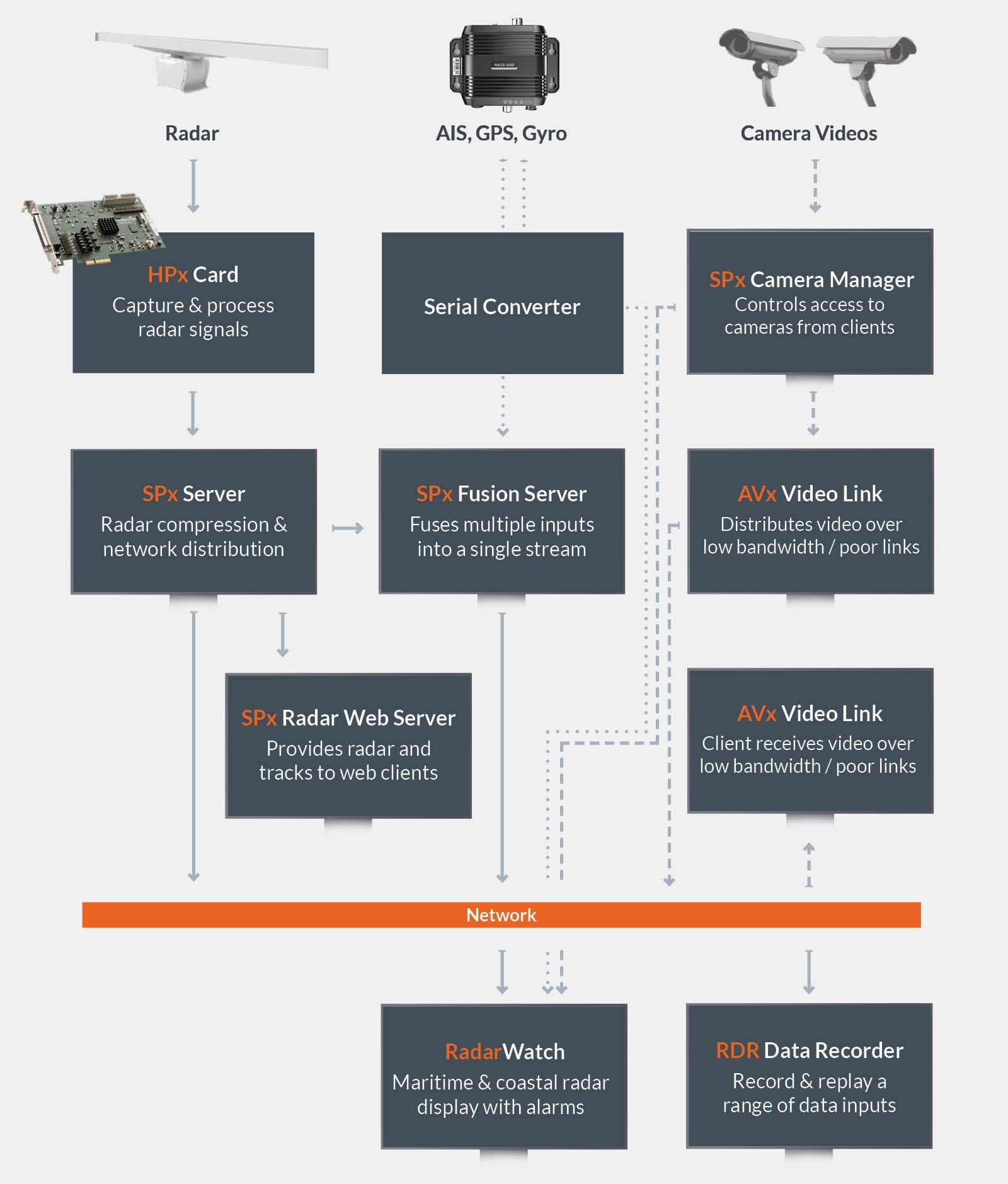

Modular Security System Capabilities for Offshore Platforms
Radar Interface Cards
The HPx series of radar interface cards can be provided with various software packages, ranging from a low-level board support library, up to the SPx Development library and full-featured server or client display applications.
SPx Camera Manager
This is a self-contained, multi-function application that serves as a bridge between video cameras and display applications. It allows shared, priority-based access to control the cameras, and supports automatic camera control to follow tracks.

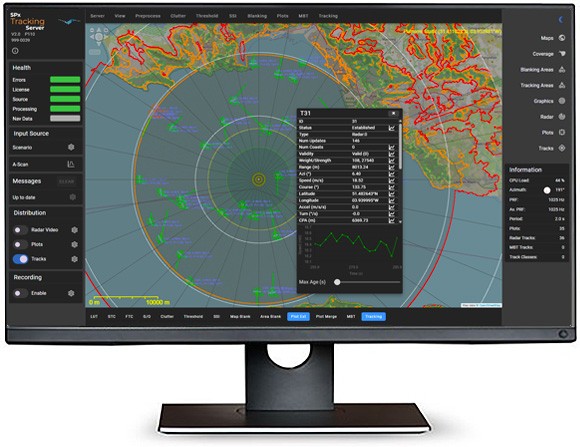

SPx Tracking Server
SPx Server is a COTS radar data extractor and target tracker. Interfacing to hardware or network radar video, SPx Server accepts polar format primary or IFF radar video and processes it to identify targets, which are then correlated from scan to scan to output positional and motion updates.
SPx Fusion Server
A component of the Cambridge Pixel SPx radar processing family and provides the capability to fuse observations from multiple independent sensors into a single stream of correlated reports. SPx Fusion Server is an executable application that produces a network stream of fused track data and requires no additional development.
AVx Video Link
AVx VideoLink is a client-server software application that manages the distribution of network camera video across unreliable, or variable bandwidth, data links. In such situations, occasional loss of data packets from the video stream can have an exaggerated effect on the continuity of a video stream, with loss of picture quality within a frame and over time.
SPx Radar Web Server
A display product that uses a standard web browser and will automatically support a wide range of display devices from smart phones through to desktop workstations, with no special requirements beyond the support for the browser. This is the perfect solution when information needs to be shared with the widest range of users. For radar display, tablet devices using wi-fi or 4G/5G data links are an attractive option for displays that need to be portable.
AVx VideoLink Client
The client part of AVx VideoLink provides network performance monitoring & client interface
RadarWatch
RadarWatch can serve as a client display or a autonomous server application.

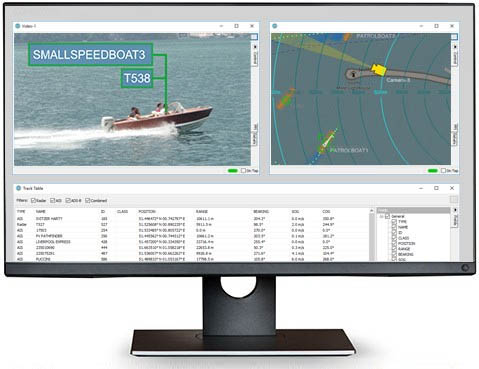

RadarWatch as a Display
RadarWatch has a fully-featured operator interface to provide a display of primary radar, tracks, AIS, maps, camera video and system events. It supports multiple screens and multiple windows, allowing radar, tracks and camera video to be displayed over a wide area of interest.
RDR Data Recording and Replay
The RDR software application is a ready-to-run executable, for multi-channel record and replay of a multitude of different data inputs, including: radar video and tracks, AIS, ADS-B, navigation data, camera video, screen video and audio. RDR may be supplied purely as a software product or as a turnkey PC system, with appropriate radar input/output cards installed.
Use our Solution Finder to find which products can best meet your project requirements.
Solution Finder
Offshore Wind, Oil & Gas Case Studies
View all case studies...
Offshore Wind, Oil & Gas Products
RadarWatch
Flexible solution for maritime security and coastal surveillance
SPx Server
COTS software application to acquire, process and distribute radar data, plots and tracks
SPx Fusion Server
Combines target observations from multiple sensors into a single stream
RDR Data Recorder
Multi-channel record and replay of radar and camera video, audio, targets and network data
SPx RadarLink
Radar Video over Low Bandwidth or Unreliable Links
AVx VideoLink
Client/server software to distribute camera video across unreliable networks
HPx-346 Analogue Radar to Network Converter
High-performance Network Radar Converter. Self-contained box or card-level product.
Get Advice & Pricing
To ensure your solution delivers your required capabilities, tell our team about your project and we'll use our decades of experience to give you the very best advice.
Our solutions are cost-effective for businesses of all sizes and we have flexible licensing options to suit different requirements.
