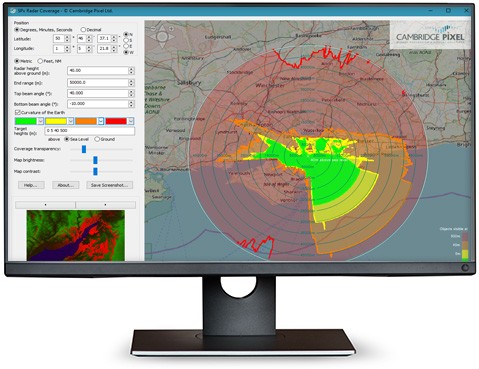

Radar Coverage Tool

Tools & Downloads

Free Instant Download

When selecting the preferred location for a radar, consideration must be given to the expected radar coverage and potential blind spots at the location. What will the radar be able to see given the proposed location, height and local terrain? This radar tool provides a visual display of radar coverage for different target heights.

Request Your Free Version of the Radar Coverage Tool

Please fill in the form below to receive an instant download link for a free copy of the Radar Coverage Tool:

Note: your email address will be added to our mailing list as legitimate interest in our products.

You may opt out of receiving newsletters from us at any time.

What do our users say?

"I am really enjoying the use of the tool, it has been quite handy in presenting data to some clients."

- Eddie Noble, Paramount Maritime Holdings, Cape Town, SA

"Your product is excelent, good work."

- Ivan Andráš

Extra Info

Radar Coverage

Shuttle Radar Topography Mission terrain data is used to calculate the radar visibility. This dataset covers latitudes between 60.395 degrees North and 56.0 degrees South, with a resolution of approximately 90m.

Radar Parameters

The position and height of the radar are specified, together with the end range, top beam angle and bottom beam angle. Targets that would be above or below the beam are deemed not to be visible.

The units used to display heights and distances may be toggled between "Metric" (metres for height and distance) and "Feet, NM" (feet for height and nautical miles for distance).

Radar and Target Modelling

The SPx Radar Coverage Tool is not a modelling tool. It does not use target cross-section and radar characteristics to predict detection. It uses line-of-sight processing to consider whether a target is potentially visible to the radar based on the beam of the radar, height of the radar and target and presence of terrain.

Target Heights

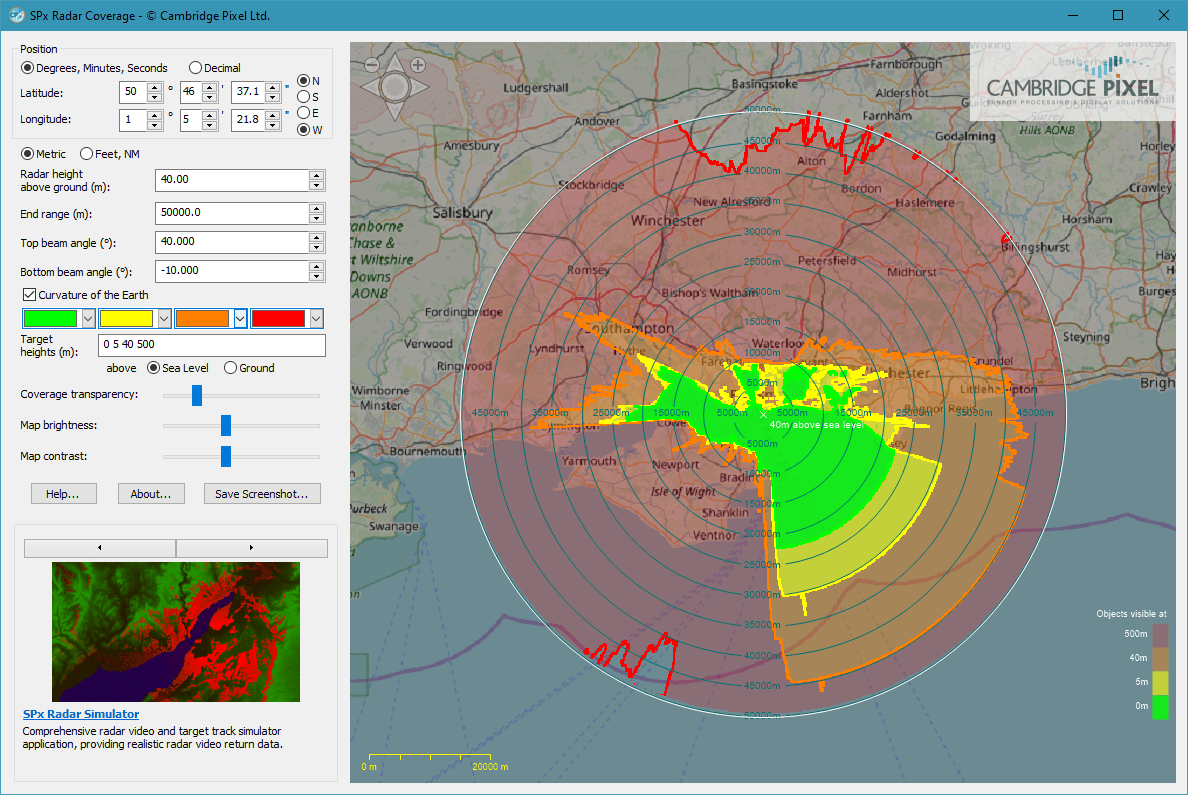

Multiple target heights may be specified with each height being assigned a colour. The transparency of the first colour used is configurable, with the other colours being gradually more transparent as they represent higher target heights. The areas on the map shown in this colour are where targets at the associated height would be line-of-sight visible to the radar, and within the top and bottom beam angles. Target heights may be specified as above sea level or above local ground level.

Underlay Map

The SPx Radar Coverage tool displays coverage information overlaid on an OpenStreetMap view. A snapshot of the current view may be saved to an image file using the "Save Screenshot…" button.

  • Easy selection of radar position:
    • Enter lat/long directly
    • Click on high-resolution map
  • Direct input of radar height
  • Map and terrain data downloaded from Internet as needed
  • Adjustable radar height, end range and vertical beam angle
  • Significant worldwide coverage (based on Shuttle Radar Topography Mission data)
  • Configurable target heights-of-interest using different colours
  • Fast update of coverage map as position or parameters are changed
  • Save display to file
  • Curvature of earth consideration
  • Adjustable brightness and contrast of map and radar coverage
  • Metric or nautical units

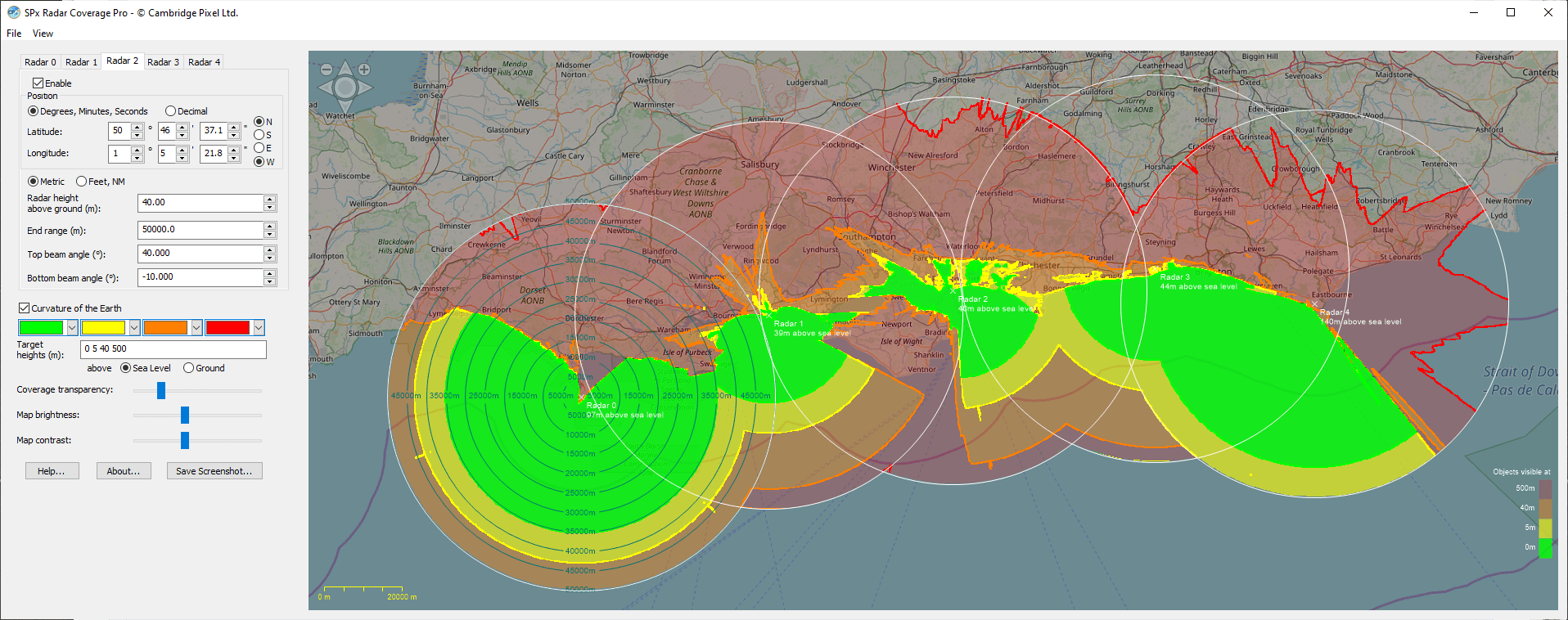

  • Pro version available, supporting up to 10 radar locations
Cambridge Pixel Sensor Acquisition and Tracking Product
SPx Radar Simulator Brochure
Cambridge Pixel Sensor Acquisition and Tracking Product
SPx Server Brochure
Cambridge Pixel Sensor Acquisition and Tracking Product
SPx Software Brochure
Cambridge Pixel Sensor Acquisition and Tracking Product
RadarView Brochure
Cambridge Pixel Sensor Acquisition and Tracking Product
Security Solutions Brochure
Cambridge Pixel
Radar Coverage Tool
Cambridge Pixel

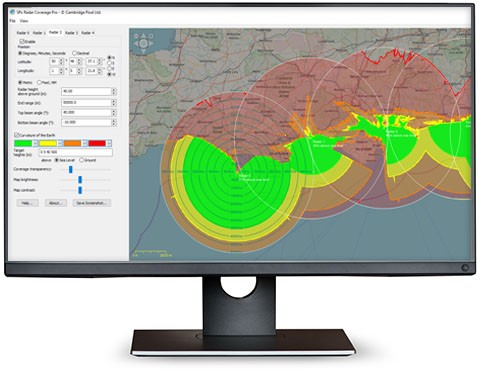

Radar Coverage Tool Pro
