RadarView-240

Display Applications

Request Free Download

RadarView-240 is a free application for the receipt and display of ASTERIX CAT-240 radar video. It receives standard ASTERIX CAT-240 radar video on a configurable IP address and port, scan converting it into a PPI format and displaying it in a window. This application is ideal for radar manufacturers and developers who work with the standard, developing new radars and building radar display applications.


Request Your Free Version of the RadarView-240 Tool & User Manual

Please fill in the form below to receive a download link for your free copy of the RadarView-240 tool:

Note: your email address will be added to our mailing list as legitimate interest in our products.

You may opt out of receiving newsletters from us at any time.

Watch this short video to see how RadarView-240 works.



ImagesExtra InfoFeaturesDocs
Cambridge Pixel
Cambridge Pixel
Cambridge Pixel
Cambridge Pixel

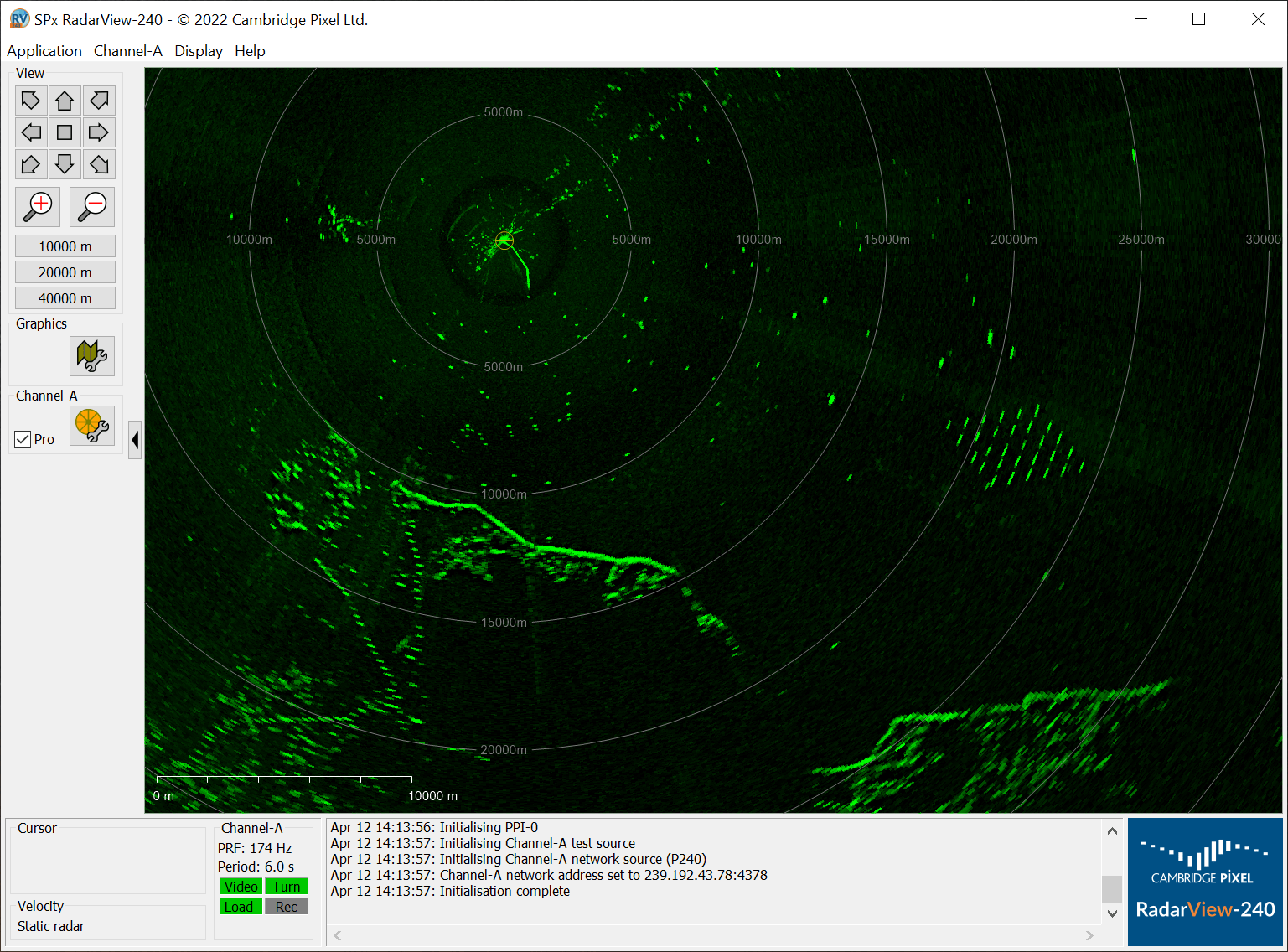

RadarView-240 screenshot showing graphics, channel and source control displays as well as application options.

Upgrading to the full version of RadarView will unlock the following features:

  • Support for CAT-48 tracks
  • Underlay maps
  • Multiple window support (up to 5 PPIs)
  • Multiple input channels
  • PPI, B-Scan and A-Scan display formats
  • Range-height indicator display
  • Record and replay
  • Analysis and measurement tools
  • AIS and ADS-B display
  • Radar processing options
  • Camera display and camera control
  • Receipt of ASTERIX Categaory-240 radar video
  • Display of scan converted radar video in a PPI window
  • PPI window pan and zoom
  • PPI window range rings
  • Cursor position displayed in X/Y metres and latitude/longitude
  • Configurable radar video colour and brightness
  • Configurable radar video fading
  • Save configuration to file
