HPx-180 PCI/PCIe Synchro-Resolver Card

Flexible PCI/PCIe Synchro/Resolver Converter

Interfaces with most standard synchro and resolver units, supporting high and low voltage references.

Request ManualGet Advice
HPx-180 PCI/PCIe Synchro-Resolver Card
HPx-180 PCI/PCIe Synchro-Resolver Card

Legacy Support with Emulated ACP/ARP Output Signals

Generate emulated ACP/ARP output signals for input cards without parallel azimuth capability.

Request a Quote

Designed & Made in Great Britain

Quality engineering, expert testing and better supply chain security.

Supports Most Synchro & Resolver Units

Designed to interface with most standard synchro and resolver units, the card provides digitisation of the input signals, comparing them with the supplied reference signal to generate a 12-bit resolution parallel azimuth output (data and strobe) as RS-422.

The HPx-180 Mk2 supports high voltage and low voltage reference and synchro/resolver inputs, making it suitable for use with a wide variety of installed systems.

Generates Parallel Azimuth & Emulated ACP/ARP Signals

The card provides digitisation of the input signals, comparing them with the supplied reference signal to generate a 12-bit resolution parallel azimuth output (data and strobe) as RS-422.

It can generate emulated ACP and ARP output signals for use with radar input cards that do not accept parallel azimuth (e.g. the HPx-346) or for legacy display systems that expect ACP/ARP radar antenna signals.

PCI/PCIe Form Factor

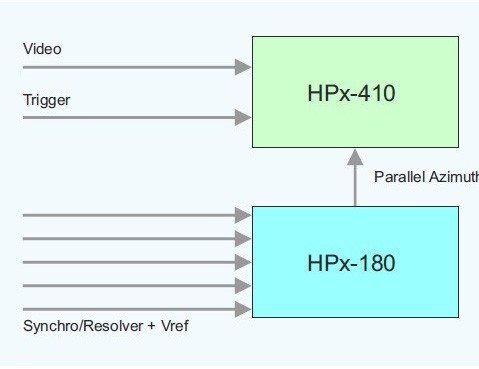

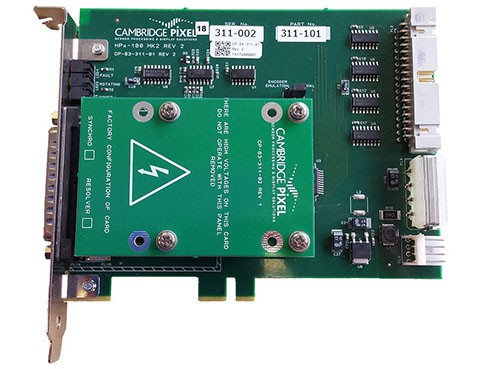

It is a PCI/PCIe form factor card, but the bus connector is for mechanical location only and does not take power or data from the PCI/PCIe bus. Power to the card is supplied using a standard PC power connector from the computer’s power supply unit (either 4-pin Molex connector or 4-pin floppy drive auxiliary connector). All inputs to the card and the emulated ACP/ARP are available on the card’s front panel via a D-type connector, while parallel azimuth is supported via an IDC socket. A ribbon cable between the HPx-180 and a radar input card such as the HPx-410 is used to provide parallel azimuth to the input card.

The HPx-180 Mk2 has front panel status indications including power, conversion error (input signals out of specification) and turning (LED turns on/off once per revolution).

HPx-180 PCI/PCIe Synchro-Resolver Card

HPx-180 PCI/PCIe Synchro-Resolver Card Details

Features
  • PCI/PCIe form factor
  • Power from standard PSU connector
  • No connection to PCI power/data
  • Supports both synchro (3-wire) and resolver (4-wire) input
  • Data + strobe parallel azimuth output compatible with HPx-410 & HPx-450
  • 12-bit resolution (4096 values per rotation)
  • Emulated ACP/ARP output for use with legacy systems
  • Input frequency DC to 40kHz
  • Rotation period 5 rpm to 120 rpm
  • Reference voltage 115V (P/N 311-101), 26V (P/N 311-102)
  • Synchro/resolver voltage 90V (P/N 311-101), 12V (P/N 311-102)
Docs

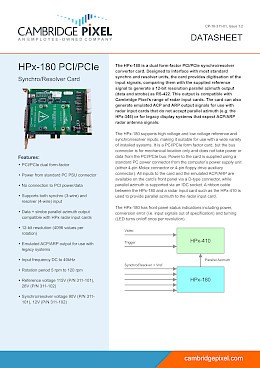

HPx-180 PCI/PCIe Synchro-Resolver Card Datasheet
