SPx Tracker-3D

3D & AESA (E-Scan) Radar Tracker

Software-based target tracking for 3D and Active Electronically Scanned Array (non-rotating) radars

Request ManualGet Advice
SPx Tracker-3D

Create & Output Target Tracks

Plot detections from the radar sensor are used to create and maintain target tracks and can be output in ASTERIX format for external display or fusion processing.

Request a Quote

Key Features

Target Tracker Software for Windows & Linux

Input Plots from Radar or External Plot Extractor

The inputs to SPx Tracker-3D are plot detections. A plot detection is a measurement, typically characterised with a position, size and statistics derived from the radar. These plots may be generated directly from processing embedded in the radar, or may be provided by an external plot extractor (for example SPx Server) that converts radar video into plots. Plots may be input in SPx, ASTERIX or one of a number of proprietary formats. The modular construction of the software makes it easy to add new input formats as a custom extension.

Intelligent Track Processing

The processing inside SPx Tracker-3D seeks to associate new plots with existing tracks, so that track positions can be updated using a Kalman filter. Where new plots cannot be associated with existing tracks they become candidates for new tracks. After a configurable integration period related to a build-up of confidence in a provisional track, a track may be promoted to a full track. This process needs to balance the desire for rapid acquisition of a track with the need to minimise false alarms.

Configurable Parameters

Building on the techniques originally developed for SPx Server, the parameters that affect the behaviour of SPx Tracker-3D may have area-dependent values. Parameter areas can have minimum and maximum heights, allowing parameters to be set as height-dependent. This is an important tool in allowing the behaviour of the track processing to be adjusted in different areas, for example to cope with different conditions or different needs.

Browser-based UI with 3D Visualisation

A browser-based user-interface provides the method of visualising plots, tracks, terrain and the associated configuration data. Track processing is sensitive to terrain, which is read from a database at startup to define the 3D space surrounding the sensor and permit the tracker to assess whether targets may be lost because of terrain. The user interface provides an intuitive display of terrain, plots and tracks, permitting the viewpoint to be moved in real-time to visualise the incoming radar detection and terrain.

Output Tracks in Multiple Formats

Track reports are sent through a configurable network interface in ASTERIX CAT-48 or SPx formats. Other formats may be supported for specific versions of the software. An SDK is available to support remote control and receipt of track reports using C++, C# or Java-based client code.

SPx Tracker-3D

SPx Tracker-3D Details

Extra info

SPx Tracker-3D complements Cambridge Pixel’s SPx Server, which is focused on target tracking for conventional rotating radars.

System Configuration

Is this the right tracker for you?

Cambridge Pixel provides two radar tracking products. SPx Server is designed for rotating radars tracking targets in 2D. SPx Tracker-3D is intended for 3D radars, or radars that have non-rotating updates (typically electronically scanned). In most cases, SPx Tracker-3D is used for air targets (such air surveillance applications and drone detection), whereas SPx Server is used for coastal surveillance, maritime and airport ground movement applications.


  • Primary/IFF Radar Tracker
  • 3D radars and E-scan radars
  • Automatic track initiation
  • Fully configurable through parameters
  • Area-dependent parameter values
  • Track-plot association
  • Kalman filter-based tracking
  • Terrain visibility processing
  • Plot input in ASTERIX, SPx or proprietary radar formats
  • Plot input recording
  • Track output in ASTERIX CAT-48
  • Web-based configuration GUI:
    • Plot display
    • Track display
    • Terrain display
    • Range-height indicator
    • 3D visualisation
    • Map display
  • Remote API for control, configuration and reports
  • Optional external fusion (with SPx Fusion Server)
  • Optional external plot extractor (with SPx Server)
  • Configurable target dynamics
  • Up to 4000 targets
  • Linux and Windows support
Radar Solution
Birds-eye view
Radar Solution
3D visualisation mode
Radar Solution
Plot and track trails
Radar Solution
Radar coverage prediction
Radar Solution
Area-dependent parameter support
Radar Solution
Tracker parameters
Radar Solution
Radar Height Indicator (RHI) display
Radar Solution
Config Diagram

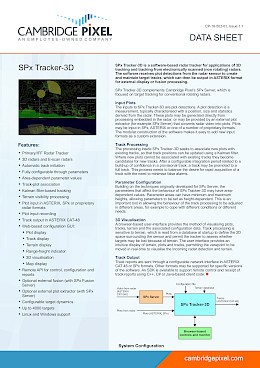

SPx Tracker-3D Datasheet
Cambridge Pixel Product Summary Brochure
User Manual

Please complete the form below to request a product manual:

Real-World Application

SPx Tracker-3D is used for tracking air targets such as air surveillance applications and drone detection. It can be integrated as part of a wider solution or used as a standalone application.
