RDR - Data Recording and Replay


The RDR software application is a ready-to-run executable, for multi-channel record and replay of a multitude of different data inputs, including: radar video and tracks, AIS, ADS-B, navigation data, camera video, screen video and audio. RDR may be supplied purely as a software product or as a turnkey PC system, with appropriate radar input/output cards installed.

The RDR application allows the user to create multiple input channels and then set the input data type for each channel. Depending on the data type, different input source options are supported. For example, RDR can accept primary video via Cambridge Pixel's HPx series of radar interface cards or as network data, in SPx format or ASTERIX CAT-240 format, over Ethernet. Similarly, NMEA-0183 navigation data sentences may be received via serial port or Ethernet. Defining channels is simple and intuitive, and a "quick-look" feature allows the user to confirm that data is successfully being received.

RDR's graphical user interface includes an overview display, showing radar video and tracks in the appropriate world-referenced location, on top of a tiled map underlay. A visual timeline display shows the status of each channel as the recording proceeds. The timeline also shows periodic snapshots of the radar or camera video, as well as event markers. Start/stop markers may be set within the timeline allowing replay to be looped within the defined interval or sections of recordings to be exported.

RDR GUI Enlarge

Discrete user-defined events may be logged at the click of a button. System events (such as loss of channel data) are logged automatically. RDR also supports location-based events, allowing the user to mark where and when a particular type of event occurred. Events are recorded along with the input data, as well as being marked on the timeline and, in the case of location-based events, on the overview display.

On replay, data may be output via user-defined output channels, routing the data to an appropriate physical output. For example, AIS data may be replayed out onto the host system’s serial port or Ethernet port, regardless of which one it was input via. For radar video replay, the application is fully compatible with Cambridge Pixel’s HPx-300 radar output card. RDR can therefore be used as part of an analogue radar record and replay system. Replay mode provides convenient navigation features, such as allowing the user to jump to specific times or events.

RDR includes a recording scheduler, allowing for recording sessions to be started at specified dates and times. Sessions may also be set to repeat with a selected frequency and the scheduler can delete sessions that are older than a specified age. This allows RDR to be configured for continuous capture of the last n days of data.

The RDR graphical user interface provides full control over the application for configuration and operation. Operation of the application may also be controlled via a socket-based control interface, allowing clients to manage recording and replay remotely.

If RDR is required to interface to radars that provide analogue signal output or to display equipment that expects to receive analogue radar signals, then turnkey systems can be supplied with up to three radar input/output hardware cards installed, according to the table below:

System part number Number of
radar input
Number of
radar output
RDR-1xyA x y
RDR-1x0B x -
RDR-10yC - y
(x + y ≤ 3)

For system integrators or OEM developers, the software and radar input/output cards are available as components for integration into a custom system. Please contact us for details of standard system options.

Typical Applications

RDR finds use in a wide range of application areas, including:

  • Surveillance - air, land, sea
  • Security - asset protection, borders, critical infrastructure
  • Training
  • ATC systems
  • Maritime activity monitoring
  • Naval sea trials

Feature Summary

  • Complete ready-to-run application software for Windows
  • Windows 7,8,10 compatible
  • Multiple input channels
  • Multiple output channels
  • Supported input and output data includes:
    • Primary radar video
    • Primary and secondary track messages
    • ADS-B messages
    • AIS messages
    • Navigation data
    • RTSP network video
    • Directshow device video
    • RTP audio
    • Directshow audio
    • Screen recording (via lightweight "Agent" client)
    • Generic network packet (without interpretation)
  • ASTERIX data support includes:
    • CAT-240 (radar video)
    • CAT-48 (plot/track messages)
    • CAT-21 (ADS-B target reports)
  • Local GUI and network control
  • Recording to local hard drive
  • SQL database recording of navigation, track, AIS and ADS-B data
  • Schedule recordings
  • Auto delete of old recording sessions
  • Replays radar video in ASTERIX CAT-240 format or as standard radar signals using HPx-300
  • Data input/output via network or serial port
  • Visual display of data being recorded, including "quick-look" feature
  • Timeline display with adjustable timescale
  • Data synchronisation across channels
  • Event marking (automatic, user-defined, location-based)
  • Export recordings
view > RDR

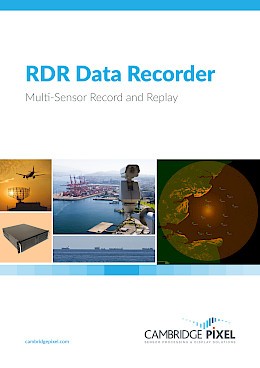

RDR Brochure
